Advanced Workflow reference

Supported CRMs

Bullhorn, Microsoft Dynamics, Oracle NetSuite, Salesforce, ServiceNow, SugarCRM, Tier1 CRM, Zendesk

NOTE: Certain Advanced Workflow features are specific to certain CRMs where indicated.

Supported PBX systems

All phone systems supported by Tenfold. Features may vary by system. For example, some phone systems support attached data while others do not.

Configure workflows in Advanced Workflow

Advanced Workflow lets you define events (triggers) and conditions that cause automated actions to occur in the end user work environment.

This reference is intended for more advanced users who are interested in viewing the capabilities of actions and triggers and using more complex workflow features.

Users who are just getting started with workflow can begin using the Launcher feature to create web page links in the UI. Refer to Configure workflows using Manage Workflows for a detailed explanation of using the more technical workflow feature to create JSON-based configurations.

The parts of a workflow

There are two main parts to any workflow: An action, which tells the app what to do, and a trigger which tells the app when to do it.

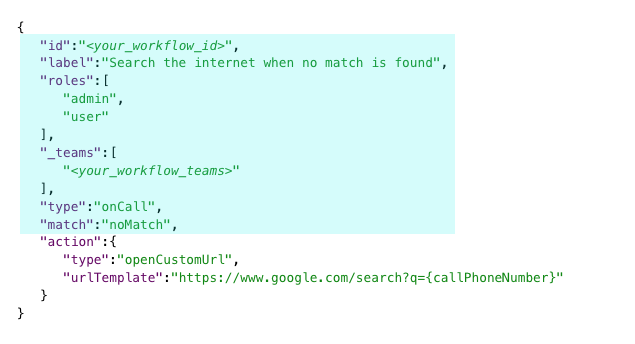

In the following example, the trigger (shown in blue) is activated when there is a call (type is onCall) when there is no matching phone number in the CRM.

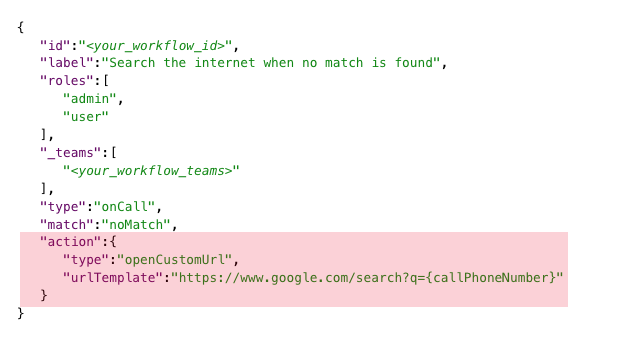

The action, which is the event the trigger causes the happen, is shown in red. In this case, a URL opens in the user's browser:

The rest of this reference explores the capabilities and options of triggers and actions.

Workflow triggers

The top level of the workflow includes the information about the trigger. A trigger is a set of conditions that must happen (such as clicking a link or receiving a call) before the action portion of the workflow can occur.

Tenfold includes the following workflow triggers:

webLink
Adds links with custom labels to the UI. This trigger is the same as the one used to create workflows for Launcher; however, it is possible to go beyond the basic abilities configured in Launcher by using webLink in custom workflows.
onCall
Performs an activity as defined by the action section when a call is received.
onFindAgain

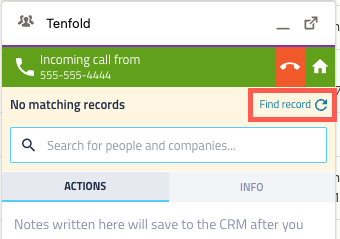

Opens a URL when the user clicks "Find record" above the Search box in the Tenfold UI. Can be combined with parameters in the same way that the webLink trigger can.
onRelatedResource
Detects when a resource related to Call has changed; runs when Call has no related resource, when a resource has been related with call, or if a related resource is replaced by another resource.
resolveMultiMatch
Performs the defined action when a multi-match call is resolved to a single match.
resolveNoMatch
Performs the defined action when a no-match call is resolved to a single match.
onClickCreateRecord
Performs the defined action when a user creates a new record in the UI.
onNoteSave
Performs the defined action when a user saves note for an interaction.

Required trigger properties

All workflow triggers must include the followign properties:

Table 1. Required trigger properties for all workflows

Name	Supported values	Description
`_teams`	specific teams configured for the CRM	Teams assigned to the workflow. "_teams":[ ],
`action`		Defines the resulting behavior when the trigger condition is met. For more information, see Actions. "action": { "type": "<type>", ... }
`id`	generated string	Unique identifier of the workflow generated by Tenfold. IMPORTANT: Do not change this value.
`label`	user-created string	User-friendly name identifying the workflow. "label" : "Example Workflow Label",
`roles`	`admin` `user` other roles configured for the CRM	User roles that can access the workflow. "roles":[ "user", "admin", ... ]
`type`		The kind of trigger used in the workflow. For more information, see Workflow triggers

Workflow actions

The workflow proceeds to the action portion when the conditions for the trigger are met. The action section of the workflow is inside the action {...} of the workflow code.

Tenfold includes the following actions:

openCustomUrl
Opens a URL in a browser tab.
openMatchingRecord
Opens a record in context in the CRM.
openParentAccount
Opens the record for the account which is the parent of the record currently in context.
openCrmSearch
Opens search in the CRM. Support is limited to Salesforce and MS Dynamics.
openCrmFlow
Opens a Salesforce Lightning Flow.
openCrmUrl
Opens a relative URL (only in Salesforce Lightning); uses the Salesforce API to open a specified view.
openRelatedResource
Opens the target resource of the onRelatedResource trigger in the CRM.
postCustomMessage
Integrates Tenfold with a Dynamics custom search page via windows.postMessage().
runApex
Runs a Salesforce OpenCTI method.
sendRequest
Sends an http request. This action can support use cases where it is necessary to make a request to some service on a localhost:port.

Actions define what happens when the conditions for the trigger are met. In the action section of each workflow, there is a type variable which holds the action type. The workflow types and the actions supported by each are listed below.

Table 2. Workflow triggers and the actions they support

Actions	Supported by these triggers
Actions	`webLink`	`onCall`	`onFindAgain`	`onRelatedResource`	`resolveMultiMatch`	`resolveNoMatch`	`onClickCreateRecord`	`onNoteSave`
`openCustomUrl`	✓	✓	✓		✓	✓	✓
`openMatchingRecord`		✓			✓	✓
`openParentAccount`		✓			✓	✓
`openCrmSearch`		✓	✓		✓	✓
`openCrmFlow`		✓				✓
`openCrmUrl`		✓			✓	✓
`openRelatedResource`		✓		✓
`postCustomMessage`		✓
`runApex`		✓
`sendRequest`		✓

‌

Properties applicable to all actions

Properties can modify how an action executes or supply required information. Some properties are specific to certain actions. All actions support the following:

Name	Supported Values	Description
`waitForCallAttribute`	`path`	The action will wait for the identified call attribute to resolve before executing. Some IVR integrations provide attached data asynchronously from call events; `waitForCallAttribute` lets you programmatically execute the action on upon Tenfold receiving the attached data. "waitForCallAttribute": { "path": "attachedData.someField" } ...

Name

Supported Values

Description

waitForCallAttribute

path

The action will wait for the identified call attribute to resolve before executing.

Some IVR integrations provide attached data asynchronously from call events; waitForCallAttribute lets you programmatically execute the action on upon Tenfold receiving the attached data.

"waitForCallAttribute": {
   "path": "attachedData.someField"
}
...

Worfklow actions and properties

`openCrmFlow`

Opens a Salesforce Lightning Flow.

This action supports the following:

Name	Supported Values	Description
`name`	string	Flow API name "name":"<Flow_API_name>"
`args`	`name` = Flow variable name `type` = the data type of the variable `value` = the name of the variable which passes a value to the workflow	Name of a Lightning Flow variable that is configured as "Available for input" in the variables settings. "args":[ { "name":"<flow_variable_name>", "type":"<variable_data_type>", "value":"<variable_name>" } ], ...

Name

Supported Values

Description

name

string

Flow API name

"name":"<Flow_API_name>"

args

name = Flow variable name

type = the data type of the variable

value = the name of the variable which passes a value to the workflow

Name of a Lightning Flow variable that is configured as "Available for input" in the variables settings.

"args":[
   {
       "name":"<flow_variable_name>",
       "type":"<variable_data_type>",
       "value":"<variable_name>"
   }
],
...

Supports the args property which holds input information for the Lightning Flow.

‌

Example 1. openCrmFlow

{
"id" : "<workflow_id>",
   "type":"onCall",
   "label":"Open Lightning Flow",
   "roles":[
      "admin",
      "user"
   ],
   "_teams":[

   ],
   "callDirection":"Inbound",
   "callType":"External",
   "action":{
      "type":"openCrmFlow",
      "name":"Tenfold_Call_Initiation",
      "args":[
         {
            "name":"input_UUID",
            "type":"String",
            "value":"{callAttachedData.UUI}"
         },
         {
            "name":"input_CCID",
            "type":"String",
            "value":"{callAttachedData.UCID}"
         }
      ]
   },
   "note":"CCC Open Lightning Flow ",
   "display":"global"
}

NOTE: Opening a Lightning Flow requires additional configuration on the CRM side.

`openCrmSearch`

The action openCrmSearch searches the CRM for information. Applicable to Salesforce and MS Dynamics.

This action supports the following:

Name	Supported Values	Description
`searchTemplate`	Tenfold variables.	Variables which can be passed to the CRM to use as search parameters. "searchTemplate": "{<variable_name>}" ...

Name

Supported Values

Description

searchTemplate

Tenfold variables.

Variables which can be passed to the CRM to use as search parameters.

"searchTemplate": "{<variable_name>}"
...

‌

Supports name and value parameters which can be used with the URL to construct a search query.

Example 2. openCrmSearch

{
   "id":"<workflow_id>",
   "_teams":[

   ],
   "roles":[
      "user"
   ],
   "type":"onCall",
   "action":{
      "type":"openCrmSearch",
      "searchTemplate":"{callPhoneNumber}"
   },
   "match":"noMatch"
}

`openCrmUrl`

Opens a relative URL (only in Salesforce Lightning); uses the Salesforce API to open a specified view based on passed parameters.

This action supports the following:

Name	Supported Values	Description
`urlTemplate`	A URL relative path.	A URL inside Salesforce which receives the parameters sent from the workflow. "urlTemplate":"<path_to_CRM_URL>", "parameters":[ { "name": "<URL_parameter_name>", "value": "<URL_parameter_value>" } ], ...

Name

Supported Values

Description

urlTemplate

A URL relative path.

A URL inside Salesforce which receives the parameters sent from the workflow.

"urlTemplate":"<path_to_CRM_URL>",
"parameters":[
    {
      "name": "<URL_parameter_name>",
      "value": "<URL_parameter_value>"
    }
 ],
...

Supports name and value parameters which can be used with the URL to construct a query.

‌

Example 3. openCrmUrl

{
   "id":"<workflow_id>",
   "_teams":[

   ],
   "roles":[
      "user"
   ],
   "action":"openCrmUrl",
   "urlTemplate:":"/internal-salesforce-relative-url/{callPhoneNumber}/{recordType}",
   "parameters":[
      {
         "name":"id",
         "value":"{callId}"
      },
      {
         "name":"module",
         "value":"{recordType}"
      }
   ]
}

`openCustomUrl`

The action openCustomUrl opens a new URL in a new browser tab. Included parameters are converted into a query string.

This action supports the following:

Name	Supported Values	Description
`urlTemplate`	`name` and `value` parameters	The URL you want to open. May contain variables from the Tenfold platform. "urlTemplate" : "https://www.google.com/search", "parameters" : [ { "name" : "q", "value" : "{recordName}" } ...
`waitForAttachedData` DEPRECATED	`true` \| `false`	Adds a delay to workflows which use called attached data; the data sometimes needs a little time to finish writing to the CRM, and this setting prevents the workflow from timing out. NOTE: This property is deprecated. It is mentioned here for historical reasons only. Use `waitForCallAttribute` instead.

Name

Supported Values

Description

urlTemplate

name and value parameters

The URL you want to open. May contain variables from the Tenfold platform.

"urlTemplate" : "https://www.google.com/search",
"parameters" : [
    {
        "name" : "q",
        "value" : "{recordName}"
    }
...

waitForAttachedData

DEPRECATED

true | false

Adds a delay to workflows which use called attached data; the data sometimes needs a little time to finish writing to the CRM, and this setting prevents the workflow from timing out.

NOTE: This property is deprecated. It is mentioned here for historical reasons only. Use waitForCallAttribute instead.

‌

Supports name and value parameters which can be used with the URL to construct a query.

Example 4. openCustomUrl

{
   "id":"<workflow_id>",
   "_teams":[

   ],
   "roles":[
      "user"
   ],
   "type":"webLink",
   "display":"contact",
   "label" : "Look up name",
   "action":{
      "type":"openCustomUrl",
      "urlTemplate":"https://www.google.com/search",
      "parameters":[
         {
            "name":"q",
            "value":"{recordName}"
         }
      ]
   }
}

`openMatchingRecord`

The action openMatchingRecord opens a record which is in context in the CRM.

This action does not support any properties or variables.

Example 5. openMatchingRecord

{
   "id":"<workflow_id>",
   "_teams":[

   ],
   "roles":[
      "user"
   ],
   "type":"resolveMultiMatch",
   "action":{
      "type":"openMatchingRecord"
   }
}

`openParentAccount`

The action openParentAccount opens the parent account of a record in context in the CRM.

This action does not support any properties or variables.

Example 6. openParentAccount

{
   "id":"<workflow_id>",
   "_teams":[

   ],
   "roles":[
      "user"
   ],
   "type":"openParentAccount"
}

`openRelatedResource`

Opens the target resource of the onRelatedResource trigger in the CRM.

Name	Supported Values	Description

‌

Example 7. openRelatedResource

{
    "type" : "onCall",
    "match" : "singleMatch",
    "action" : {
        "type" : "openRelatedResource"
    },
    "callDirection" : "Inbound"
}

`postCustomMessage`

When the trigger conditions are met in Tenfold, Tenfold emits this custom search event which contains some information as a payload (example: caller phone number). The MS Dynamics CRM then catches the event and executes the logic contained in a custom script, which then performs some task. For example, it could redirect the user to a custom search page displaying search results with the payload in the search query.

NOTE: This action applies only to the embedded version of Tenfold for Microsoft Dynamics.

This action supports the following:

Name	Supported Values	Description
`message`		Name of the Tenfold event.
`data`	A key : value ( `<name> : <variable>`) pair where the value of a Tenfold variable is saved as the value of a named variable.	Variable information to submit to the search page.

‌

Example 8. postCustomMessage

In the following workflow, the action is triggered when an inbound call event occurs. This causes Tenfold to send the event tenfold:render-custom-search-page to MS Dynamics, along with a payload containing the phone number of the call. When Dynamics receives the event, it uses the payload data to search for the call phone number.

{
  "type":"onCall",
   "callDirection":"Inbound",
   "action":{
      "type":"postCustomMessage",
      "message":"tenfold:render-custom-search-page",
      "data":{
         "phoneNumber":"{callPhoneNumber}"
      }
   },
   "id":"<workflow_id>",
   "_teams":[

   ],
   "roles":[
      "user",
      "admin"
   ]
}

NOTE: Additional configuration on the MS Dynamics side is required for postCustomMessage. For specific details, contact Tenfold support.

`runApex`

Executes an Apex method from an Apex class that’s exposed in Salesforce.

Name	Supported Values	Description
`className`	string	Apex class of the method to execute.
`methodName`	string	Method to execute.
`params`		Method parameters to pass. The string must include field value pairs and be formatted as a valid query string.

‌

Example 9. runApex

{
    "type" : "onCall",
    "onSingleMatch" : true,
    "action" : [
        {
            "type" : "runApex",
            "className" : "ExampleClass",
            "methodName" : "ExampleMethod",
            "waitForAttachedData" : true,
            "params" : {
                "inputData" : {
                    "category" : "{callAttachedData.category}",
                    "intent" : "{callAttachedData.intent}",
                    "description" : "{callDescription}"
                }
            }
        },
        {
            "type" : "relateResource",
            "param" : "{returnValue.runApex.caseId}"
        }
    ],
    "callDirection" : "Inbound",
},

`sendRequest`

Sends a REST request to Salesforce to a service on a local port.

Name	Supported Values	Description
`requestType`	`GET` \| `POST`
`urlTemplate`	string
`requestBody`		The body of the REST request.

‌

Example 10. sendRequest

Variables

Parameters can obtain information about objects the CRM knows about such as a call, a record, or the current user and can be used as conditions for triggering a workflow. Weblinks use a separate set of parameters from other types of workflows. Tables listing the supported parameters for each are included below.

Supported weblink parameters

The Advanced Workflow Launcher feature supports the following parameters:

Table 3. Launcher parameters (standard) supported in webLinks. Additional variables configured in the Attached Data feature are made available on the Call object.

Object	Property	Description
Call¹	Match count	Number of CRM matches returned from the CRM when searching by ANI.
	subject	First 50 characters of the call description.
	Description	Notes captured in the Tenfold UI.
	Current Call Status	Current status of the call. For example, ringing, connected, hangup.
	Start Time	Timestamp of the ringing event.
	Connected Time	Timestamp of the connected event.
	End Time	Timestamp of the hangup event.
	Duration	Length of the call from ringing to hangup.
	Talk Time Duration	Duration of the interaction from the connected event to the hangup event.
	Direction	Direction of the call. For example, Inbound or Outbound.
	Phone number	Phone number associated with the call.
	Inbound Number	Deprecated
	User Extension	Phone extension associated with the call.
	User Device	Device associated with the call. Support varies by integration.
	Created Date	Timestamp of when the call object was created in the Tenfold platform.
	CRM Record Id	Unique identifier assigned by the CRM to the record in the CRM.
	Platform PBX Call ID	Unique ID of the call within the telephony platform. Support varies by integration.
	PBX Unique Call ID	Unique ID of the call within the telephony platform. Support varies by integration.
	Is Queue	Boolean value indicating whether the call is a queue call. Support varies by integration.
	Type	Type of call (example: Internal or External).
	Is Transfer	Boolean value. Indicates if the call is a transfer call. Support varies by integration.
	Is Conference	Boolean value. Indicates if the call is a conference call. Support varies by integration.
	Is Internal	Boolean value. Indicates if the call is an internal call. Support varies by integration.
	Recording link	Web link to a recorded version of a call.
User	Name	Name of the logged in Tenfold user.
	CRM Unique Id	Unique identifier assigned by the CRM to the logged in Tenfold user.
	CRM Username	Unique username for the CRM user.
	Username	The Tenfold username of the currently logged in Tenfold user.
Organization	Company	Name of the logged in Tenfold user's company as defined in Tenfold Dashboard under Company Settings.
	Locale	The locale of the currently logged in Tenfold user.
	Timezone	Time zone of the logged in user as defined in Tenfold Dashboard under Company Settings.
	Created At	Timestamp of when the user object was created in the Tenfold platform.

¹ The Call object is only available for webLinks for the Toolbar and "More Links" types.

Supported JSON configurator workflow parameters

Parameters from the CRM environment can be passed between the workflow and the CRM framework.

Table 4. Workflow variables supported in Manage Workflows (workflows other than webLink). Additional variables configured in the Attached Data feature are made available on the Call object.

Property	Description	Notes
`callId`	Unique call ID within the Tenfold platform.
`callPhoneNumber`	Phone number of the call.
`callDirection`	Direction of the call (for example, Inbound or Outbound).	Supported values: `Outgoing` `Inbound`
`callExtension`	Extension of the call.
`callCrmRecordId`	Unique identifier assigned by the CRM to the call record in the CRM.
`callStatus`	The state of the call which triggers the workflow.	Supported values: `Hangup` `In Limbo` `Ringing` `Connected` `Held` `Mute`
`callType`		Supported values: `External` `Internal`
`recordId`	Unique identifier assigned by the CRM to the matched record from the CRM. For example, a contact, account, or lead.
`recordName`	Name of the matched record from the CRM. For example, the name of the contact, account, or lead.
`recordEmail`	Email address associated with the matched record from the CRM.
`recordPhone`	Phone number associated with the matched record from the CRM.
`recordType`	Type of CRM record for the matched record. For example, a contact, lead, or account.

These variables can be used in URLs, parameters and in searchTemplate.

Other workflow properties

These properties are used with different triggers to define other aspects of the workflow or to define triggers. Some of these properties are required with certain types of triggers.

Table 5. Other workflow properties

Name	Supported values	Description	Applicable to:
`delay`	number	The length of time to wait before running the action (in milliseconds).	`onCall`
`disableDefaultBehavior`	`true` \| `false`	Disables the default behavior of `onClickCreateRecord` so that a new browser tab opens instead of a new create record form.	`onClickCreateRecord`
`display`	`contact` `contactCard` `global` `historyElement`	Enables rendering web links within the Tenfold UI for: on contact cards (`contact`) in global links (`global`) in call history (`historyElement`) on the call description card (`contactCard`) Defaults to `global` if display is not specified.	`webLink`
`icon`	`.ico` file or a link to a `.png` file	An icon which displays next to a web link in the UI.	`webLink`
`match`	`multiMatch` `noMatch` `singleMatch`	The match scenario that triggers the workflow.	`onCall` `webLink`
`onSingleMatch`	`true` \| `false`	Evaluates to `true` when there is only one match for a call from the beginning.	`onCall`

Conditions

Conditions make complex workflows possible which include numerous dependencies. Conditions follow the order of mathematical operations, beginning with the most deeply nested statements and proceeding outward. When all conditions have been evaluated and condition evaluates to true, then the action proceeds. If condition evaluates to false, then the workflow does not run.

Conditions are supported by all triggers except for webLink.

Table 6. Workflow property conditions

Name	Description	Values
`child`	A JSON object made up of a key, an operator, and a value. It evaluates to either `true` or `false` and can be compared to other child objects using Boolean operators.	`<key>` , `<operator>` , `<value>` Example format of a child object: "child2" : { "key" : "{callAttachedData.city}", "operator" : "non-equal", "value" : "detroit" } NOTE: While it is not required to use "child" to name these objects, it is a best practice for clarity and supportability.
`condition`	A JSON object which compares included child objects to produce a Boolean value. If `condition` evaluates to `true`, then the worfklow proceeds. If it evaluates to `false`, then the workflow stops.	`child` `logicalOp`
`key`	A property in the format of `<object>.<property>` which represents a value.	A property in the format `<object>.<property>` which is compared with the value assigned to `value`.
`operator`	A mathematical operator; used to compare `key` and `value`.	`gt` = greater than `gte` = greater than or equal to `equal` = equal to `non-equal` = not equal to `lt` = less than `lte` = Iess than or equal to `isNil` = is null or undefined
`value`	A value assigned to a key.	A value which is compared to `key` using a mathematical operator to produce a Boolean value.
`logicalOp`	A logical operator.	`AND` `OR`

Example 11. Logical and mathematical operators in a workflow

An example of a condition.

{
   "id":"<workflow_id>",
   "roles":[
      "admin",
      "user"
   ],
   "_teams":[
      "60d201b4aab4dc7af8667f5c"
   ],
   "type":"onCall",
   "callDirection":"Inbound",
   "action":{
      "type":"openCustomUrl",
      "urlTemplate":"https://foo.com/{callAttachedData.TransferReason}?xx={callAttachedData.someIvrData}",
      "waitForAttachedData":true,
      "condition":{
         "child1":{
            "child1":{
               "key":"{callAttachedData.TransferReason}",
               "operator":"equal",
               "value":"InternetPickup"
            },
            "logicalOp":"AND",
            "child2":{
               "key":"{callAttachedData.city}",
               "operator":"non-equal",
               "value":"lodz"
            }
         },
         "logicalOp":"AND",
         "child2":{
            "child1":{
               "key":"{callAttachedData.testData}",
               "operator":"gt",
               "value":5
            },
            "logicalOp":"OR",
            "child2":{
               "key":"{callAttachedData.someIvrData}",
               "operator":"gte",
               "value":10
            }
         }
      }
   }
}

In this section:

Advanced Workflow reference

Configure workflows in Advanced Workflow

The parts of a workflow

Workflow triggers

Required trigger properties

Workflow actions

Properties applicable to all actions

Worfklow actions and properties

openCrmFlow

openCrmSearch

openCrmUrl

openCustomUrl

openMatchingRecord

openParentAccount

openRelatedResource

postCustomMessage

runApex

sendRequest

Variables

Supported weblink parameters

Supported JSON configurator workflow parameters

Other workflow properties

Conditions

Search results

`openCrmFlow`

`openCrmSearch`

`openCrmUrl`

`openCustomUrl`

`openMatchingRecord`

`openParentAccount`

`openRelatedResource`

`postCustomMessage`

`runApex`

`sendRequest`
